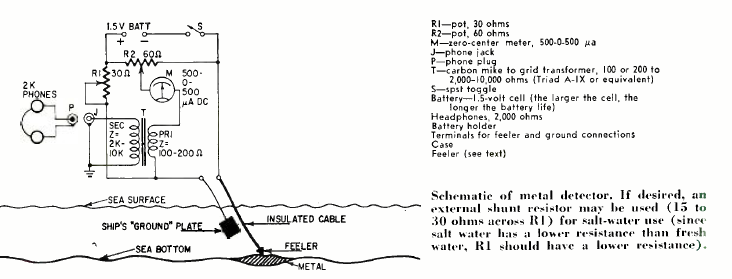

The idea of this interesting detector is to detect the changes in conductivity that occur with the presence of a metal object buried at the bottom of a river or the sea. The circuit is from a Radio Electronics from July 1960.
| Clique na imagem para ampliar |
