Ultrasonic Transmitter (CB22191E)

Details
Written by: Newton C. Braga

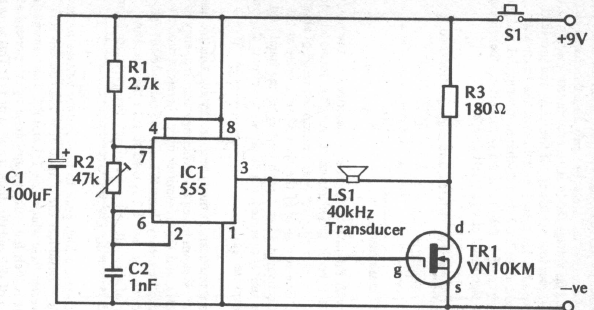

This circuit uses a high impedance piezoelectric transducer. The circuit is from a 1989 documentation. The power field effect transistor supports equivalent.
