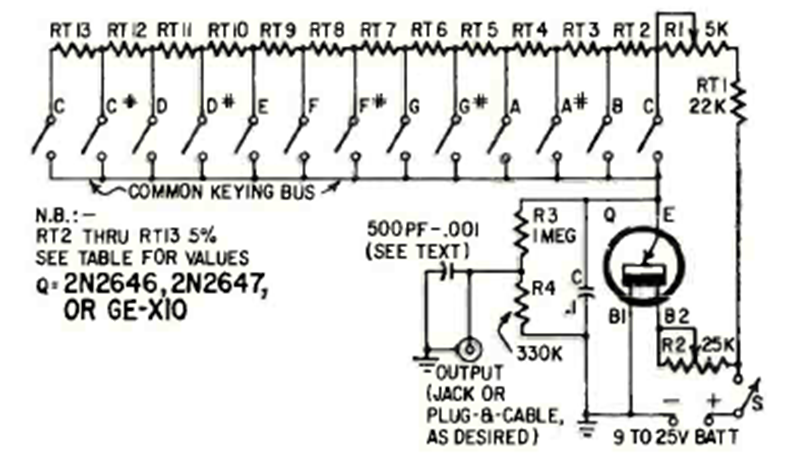

This simple circuit with a unijunction transistor at the time appeared in Radio Electronics magazine in June 1966. The tuning depends on the resistors. The circuit must be connected to an audio amplifier.
| Clique na imagem para ampliar |
Small unijunction organ (CB23749E)
