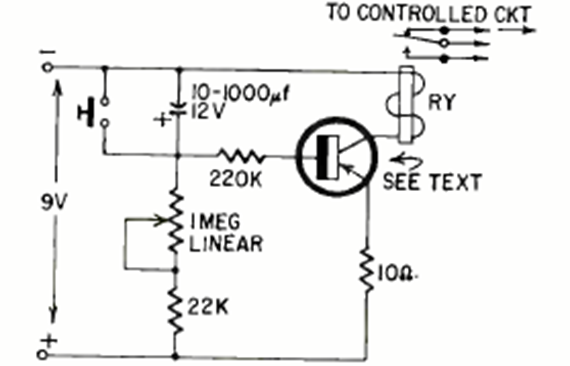

Found in a Radio Electronics from May 1964, this circuit activates a relay depending on the supply voltage. The time is given by the capacitor, which must be of good quality, as leaks can affect operation.
1-Transistor timer (CB23561E)
- Details
- Written by: Newton C. Braga
