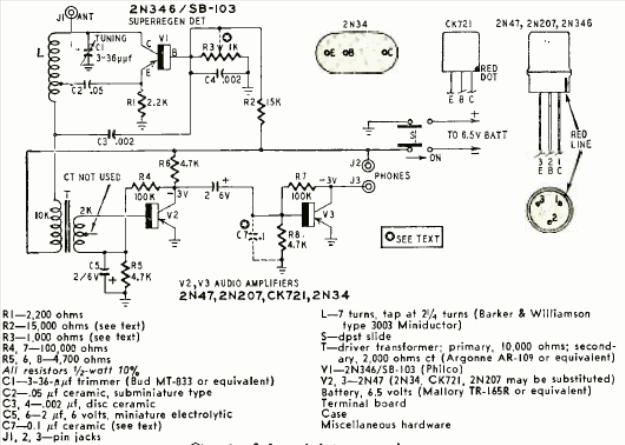

This circuit is from Radio Electronics magazine from June 1958. The tuned range at the time was around 40 MHz. The circuit can be heard on high impedance headphones.
Police Band Receiver (CB23560E)
- Details
- Written by: Newton C. Braga
This circuit is from Radio Electronics magazine from June 1958. The tuned range at the time was around 40 MHz. The circuit can be heard on high impedance headphones.
