Bench power supply (CB23683E)

Details
Written by: Newton C. Braga

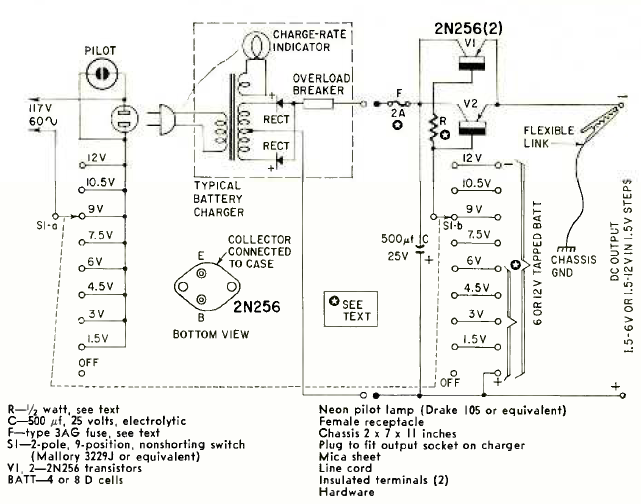

This benchtop power supply with various output voltages from 1.5 to 12 V was found in Radio Electronics magazine from August 1960. The circuit uses power transistors of the time.
