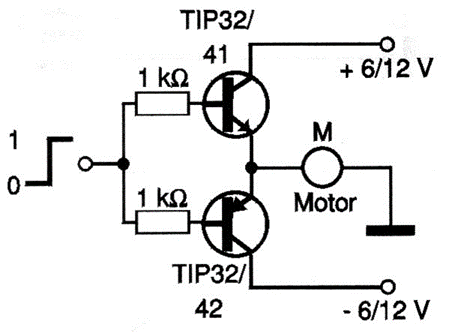

This is a rotation direction control for a small motor up to about 2 A with the indicated transistors. The circuit can be used as a shield for microcontrollers or in other applications. Transistors must be equipped with heat sinks.
Bidirectional motor control shield (CB23720E)
- Details
- Written by: Newton C. Braga
