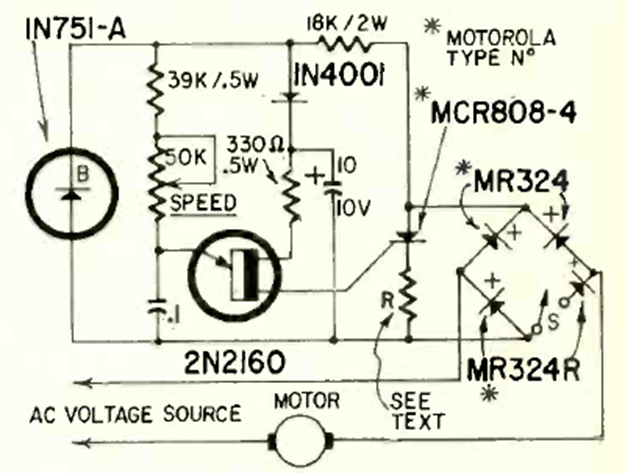

This circuit is from a Radio Electronics from April 1964. Note the unijunction transistor of the time as well as the Motorola SCR. The circuit is for 2 A motors connected to the 117 V network at the time in the United States.
SCR speed control (CB23559E)
