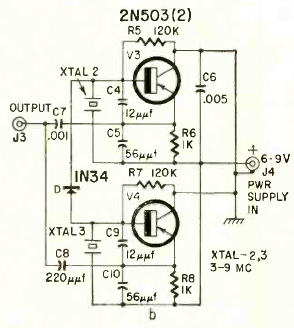

The frequency of this oscillator depends on the crystal used and the transistors. The circuit was found in Radio Electronics magazine from April 1961. It is used in receiver calibration. The figure shows the low and high frequency section.
Oscillator up to 50 MHz (CB23739E)
- Details
- Written by: Newton C. Braga
