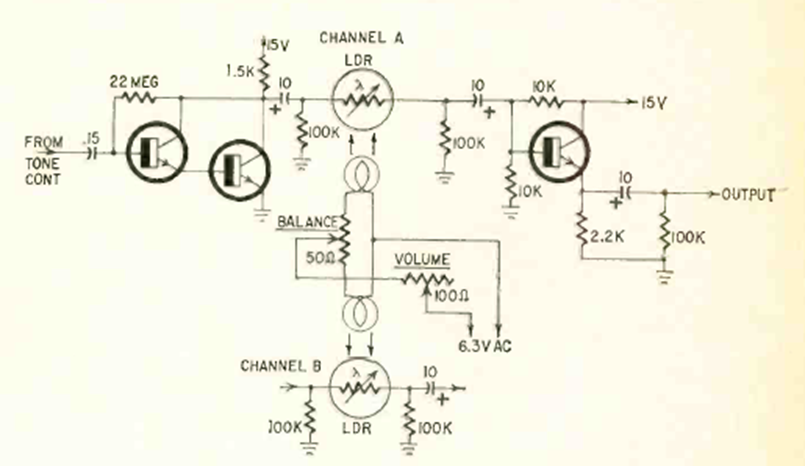

This wired control circuit serves both volume and balance between channels. We found it in Radio Electronics magazine from August 1968. Transistors are common general-purpose types
| Clique na imagem para ampliar |
Remote volume control (CB23927E)
- Details
- Written by: Newton C. Braga
