Crystal Oscillator (CB22255E)
- Details
- Written by: Newton C. Braga

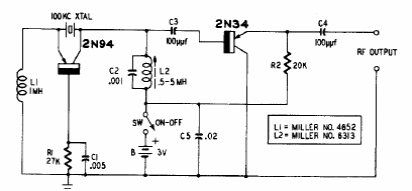

This circuit for a frequency of 100 kHz was found in documentation from the 60's. The circuit can be changed to operate at other frequencies by changing the crystal.
