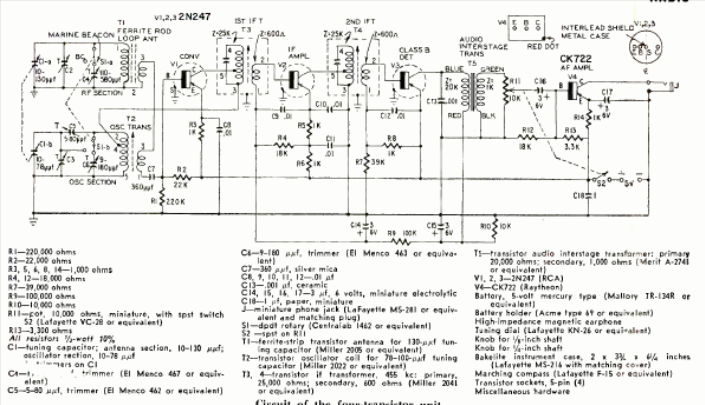

The assembly of this interesting circuit appeared in Radio Electronics magazine in June 1958. Combining two tuning circuits into one using directional ferrite antennas, it canceled signals in a certain orientation, pointing exactly in the direction from which they came.
| Clique na imagem para ampliar |
