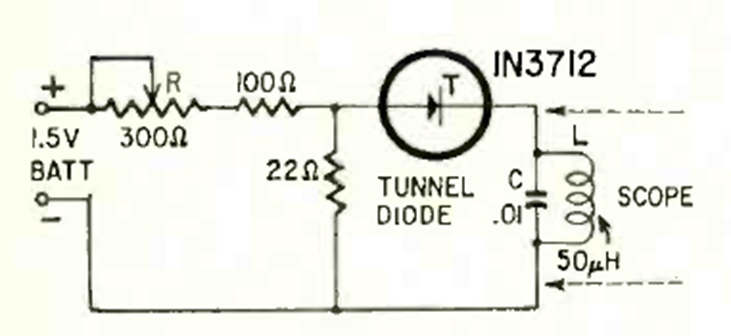

This circuit was found in a Radio Electronics from February 1966. The circuit operates with a common battery and the frequency is given by the resonant LC circuit.
| Clique na imagem para ampliar |
Tunnel diode oscillator (CB23702E)
- Details
- Written by: Newton C. Braga
