Nixie tube circuit (CB23938E)

Details: Written by: Newton C. Braga

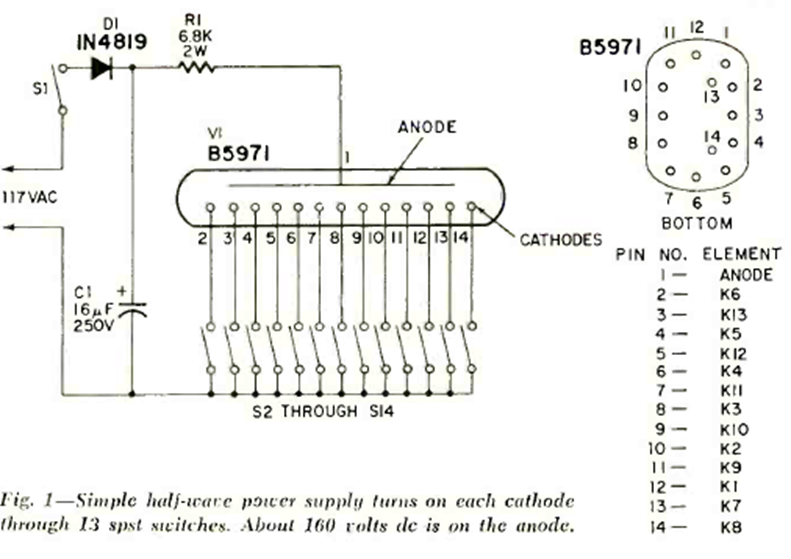

This experimental circuit with Nixie tube was found in the Radio Electronics magazine of March 1969. The circuit serves for demonstrations and also for testing these digital indicator tubes.
