Automatic light (CB24332E)

Details
Written by: Newton C. Braga

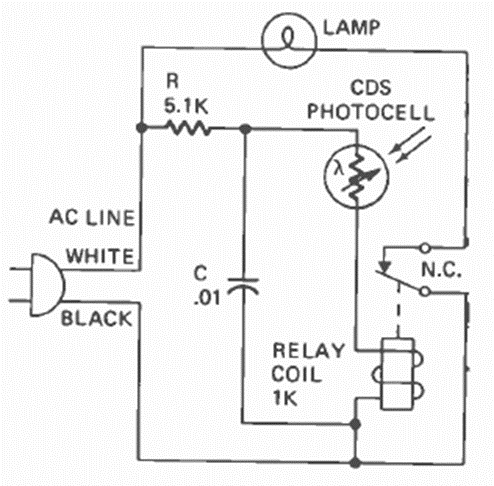

This circuit activates a relay that has a lamp as a load. The circuit is from a Radio Electronics from November 1975. The Sensor is a common LDR. The relay is of the high voltage sensitive type.
