Multi-Voltage Power Supply (CB24917E)

Details: Written by: Newton C. Braga

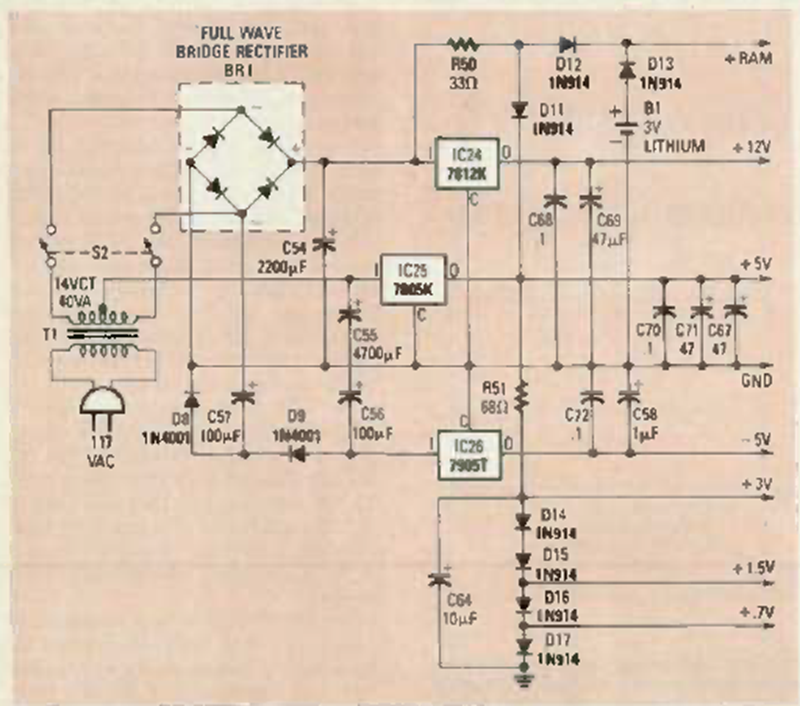

This multi-output power supply was found in an article in Radio Electronics magazine in November 1985. Voltage regulators must be equipped with heat sinks.

| Clique na imagem para ampliar |
