Gas Sensor (CB24417E)

Details
Written by: Newton C. Braga

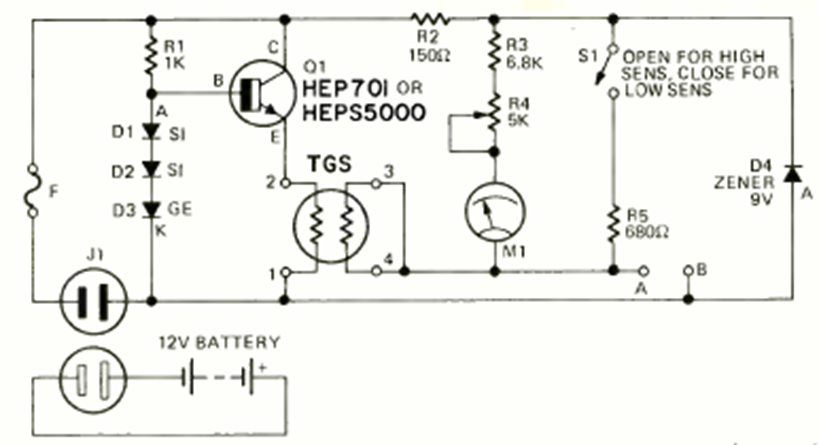

This gas sensor circuit was found in July 1976 Radio Electronics magazine. The TGS sensor was a common type at the time. Note the power supply to the circuit.
