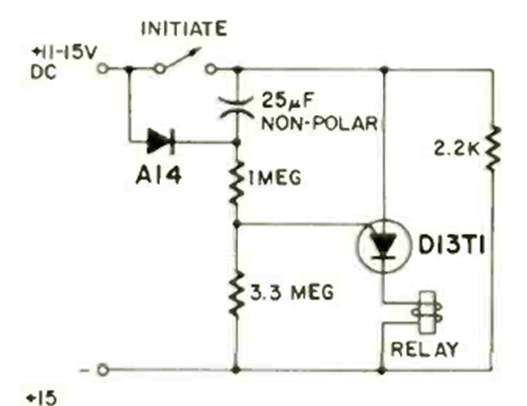

This timer circuit uses a unijunction programmable transistor. The time is given by the capacitor and the relay is of a sensitive type according to the supply voltage. The circuit is from a Radio Electronics from November 1970.
Timer with PUT (CB24085E)
- Details
- Written by: Newton C. Braga
