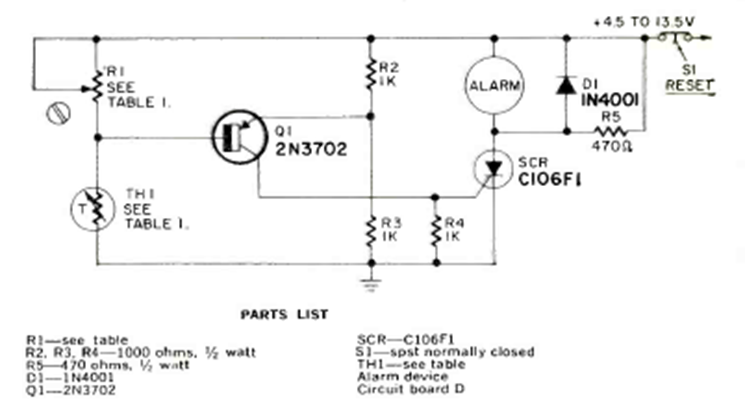

We found this circuit in the September 1971 Radio Electronics magazine. The SCR can be any of the 106 series and the buzzer can be replaced by a relay according to the supply voltage.
| Clique na imagem para ampliar |
Light alarm with LDR (CB24162E)
- Details
- Written by: Newton C. Braga
