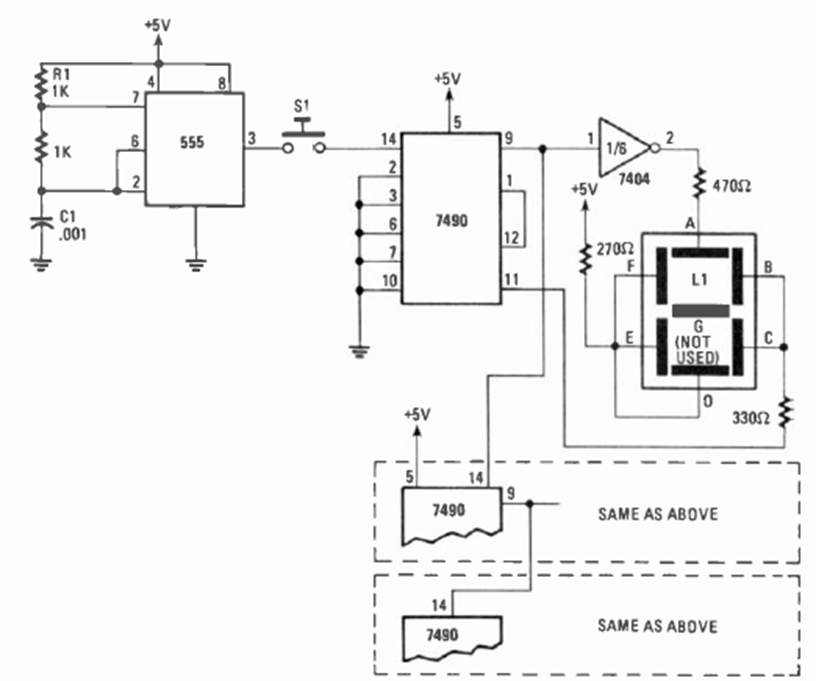

This digital circuit was found in the September 1980 issue of Radio Electronics magazine. The circuit uses TTL logic and must be powered with 5 V. The sliding effect of the segments can be changed by changing C1.
| Clique na imagem para ampliar |
Slot Machine (CB24649E)
- Details
- Written by: Newton C. Braga
