Bistable Flip Flop (CB24433E)

Details
Written by: Newton C. Braga

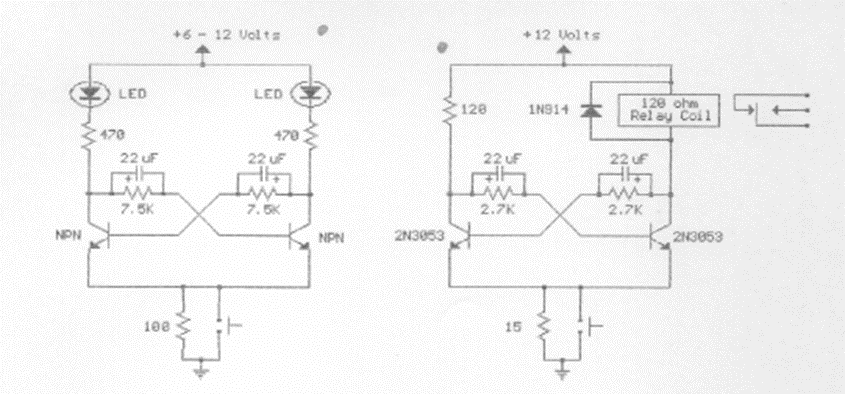

This circuit was found in documentation from the 90s. The transistors can be general-purpose equivalents. The circuit has two versions, one that drives LEDs and another that drives a relay as a load.




| Clique na imagem para ampliar |
