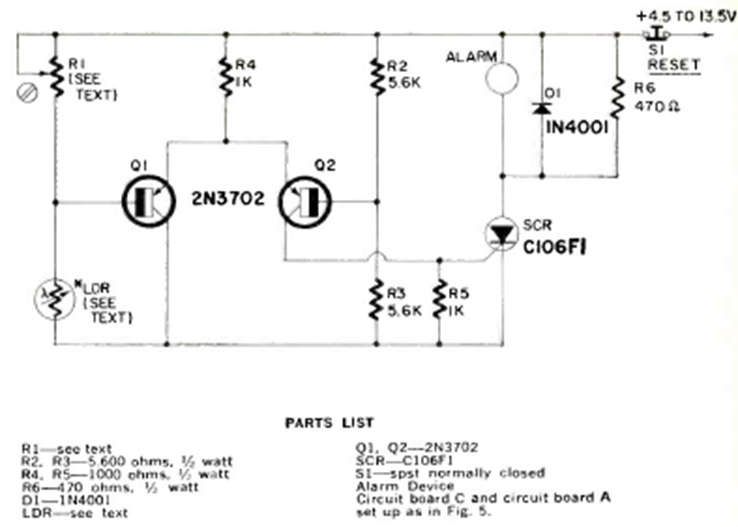

This circuit was found in the September 1971 Radio Electronics magazine. The buzzer can be replaced by a relay according to the supply voltage. R1 adjusts the sensitivity.
| Clique na imagem para ampliar |
SCR Light alarm (CB24161E)
- Details
- Written by: Newton C. Braga
