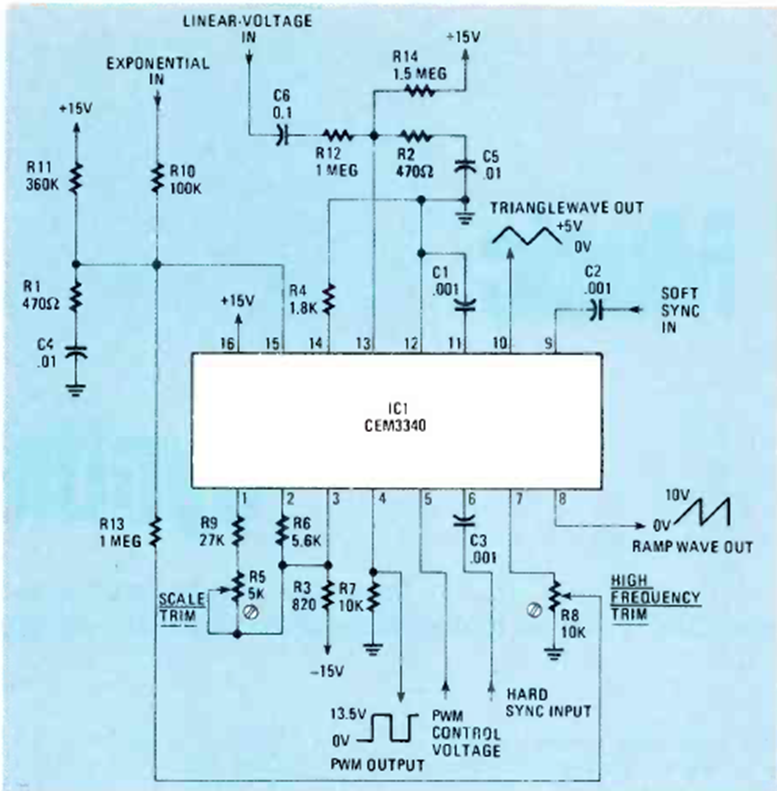

This circuit appeared in the May 1983 issue of Radio Electronics magazine. It is based on the dedicated integrated circuit CEM3340. The circuit provides signals with various waveforms.
| Clique na imagem para ampliar |
Music Synthesizer VCO (CB24743E)
- Details
- Written by: Newton C. Braga
