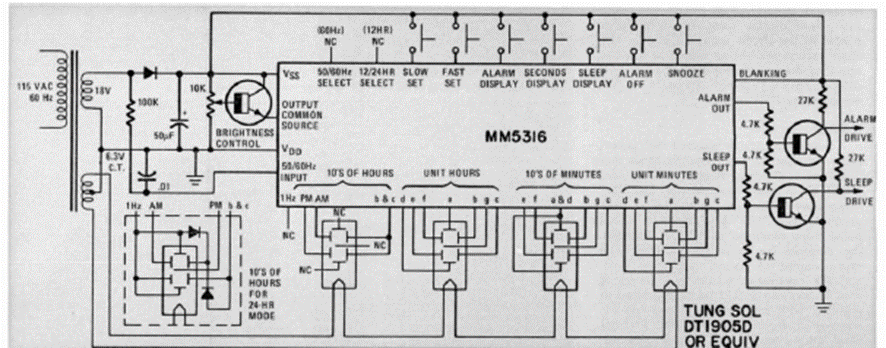

Published in the September 1973 issue of Radio Electronics magazine, this diagram may be useful to restorers, since the integrated circuit is no longer manufactured.
| Clique na imagem para ampliar |
MM5316 Clock (CB24259EE)
- Details
- Written by: Newton C. Braga
