Anti-Theft Circuit (CB24956E)

Details: Written by: Newton C. Braga

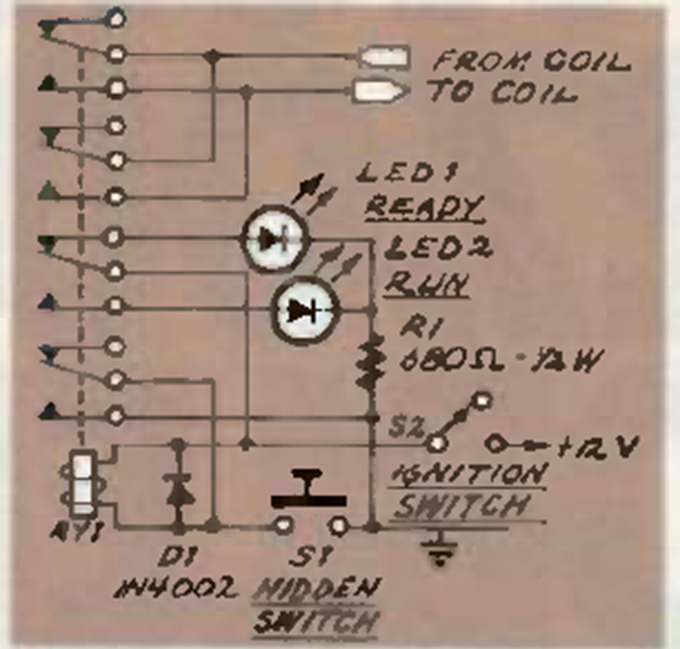

This car anti-theft circuit is from a Radio Electronics magazine from May 1986. The circuit inhibits the ignition system of cars with mechanical switching systems.

| Clique na imagem para ampliar |
