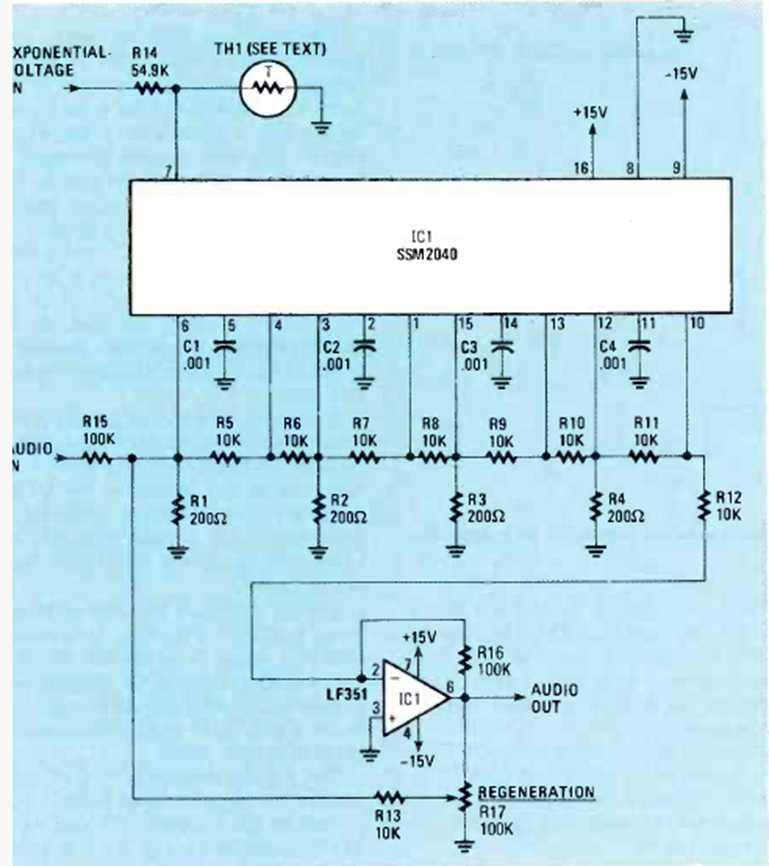

This circuit was found in the May 1983 issue of Radio Electronics magazine. The SSM7046 integrated circuit is a special type for this purpose and is quite sensitive to short circuits, requiring a symmetrical power supply.
| Clique na imagem para ampliar |
