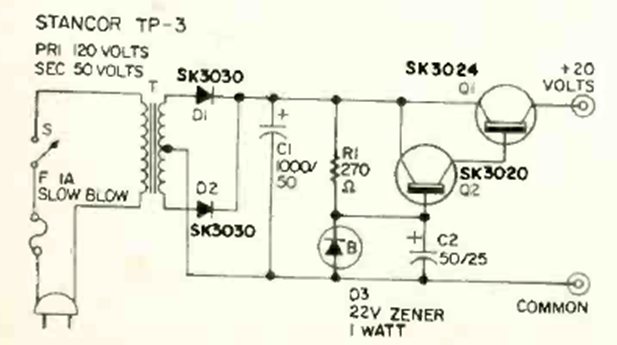

This 20 V power supply is indicated for the previous circuit and has a current of around 200 mA depending on the transistors used. The circuit is from a Radio Electronics from October 1970.
20 V Power Supply (CB24082E)
- Details
- Written by: Newton C. Braga
