Automotive Exhaust Gas Analyzer (CB24802E)

Details
Written by: Newton C. Braga

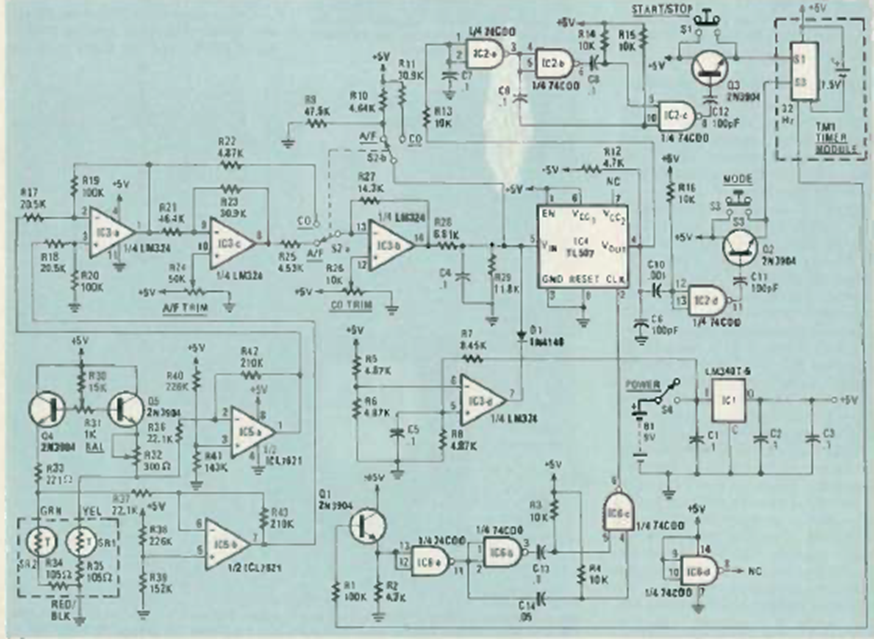

This circuit was found in the May 1984 issue of Radio Electronics magazine. It analyzes the exhaust gases emitted by a car. The circuit uses a special gas sensor from that time.




| Clique na imagem para ampliar |
