60 Hz pulses with the MM5369 (CB24930E)
- Details
- Written by: Newton C. Braga

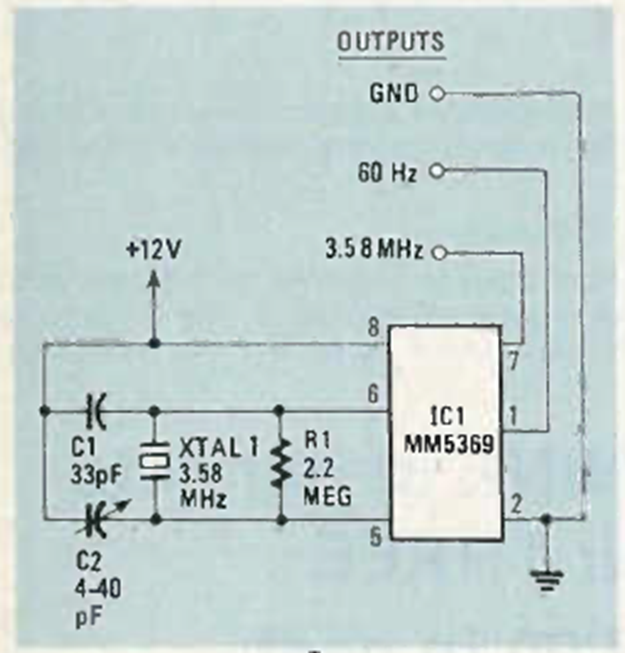

The figure shows how to generate a 60 Hz clock signal for TTL circuits. The circuit is from Radio Electronics from June 1985. The crystal is 3.58MHz.
