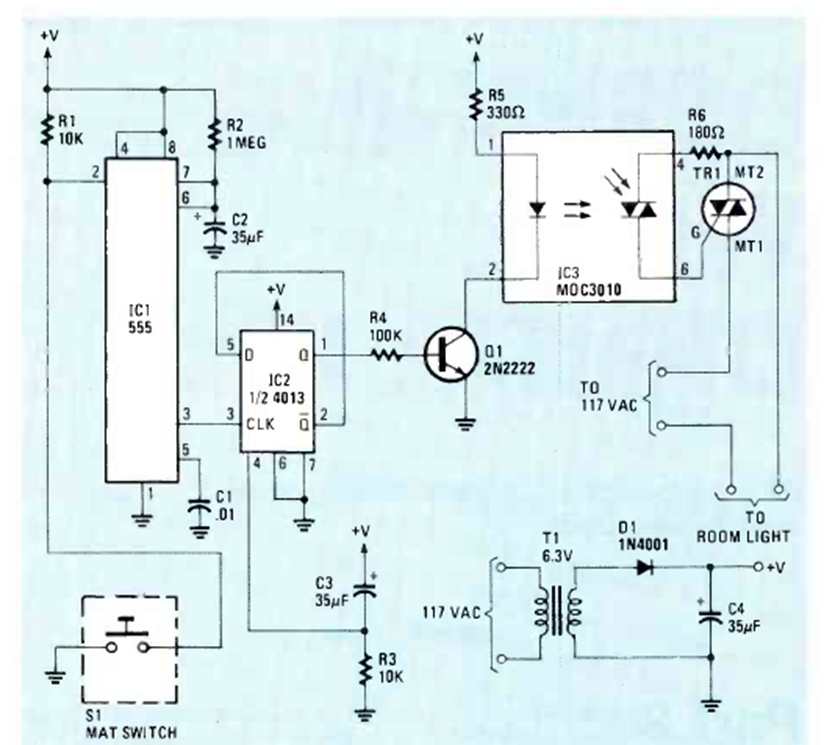

Using an optocoupler this circuit turns on the light in a bedroom for a set amount of time when someone steps on the pressure switch under the carpet. The circuit is from Radio Electronics from May 1985.
| Clique na imagem para ampliar |
