Infrared Transmitter (CB24494E)

Details
Written by: Newton C. Braga

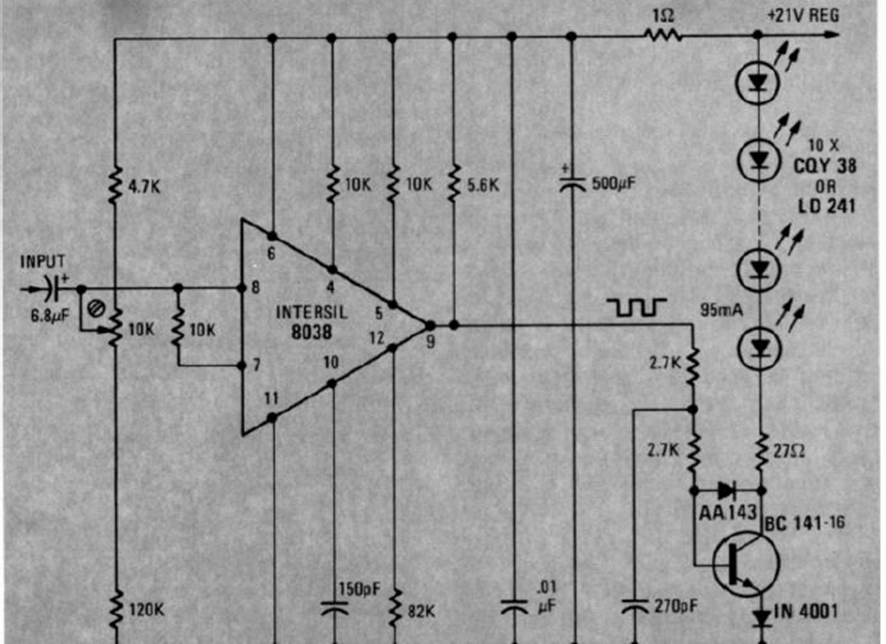

This circuit is from Radio Electronics from March 1977. The integrated circuit is from that time and the circuit is intended for an infrared audio link. The modulation is in pulse frequency.
