741 Amplifier (CB24233E)

Details
Written by: Newton C. Braga

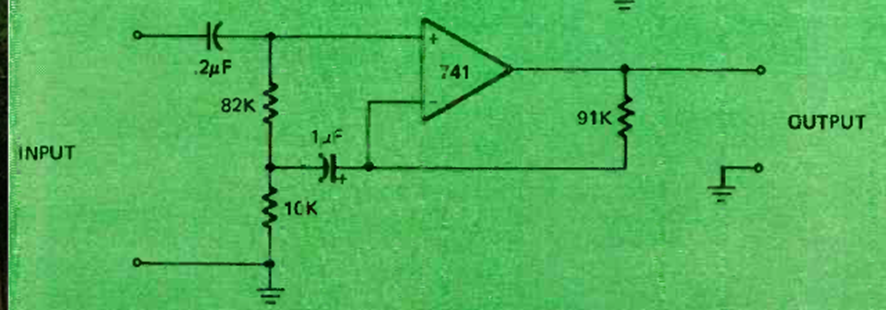

This is a traditional 741 configuration with gain close to 100. We found it in the December 1972 Radio Electronics magazine. The power source must be dual.




| Clique na imagem para ampliar |
