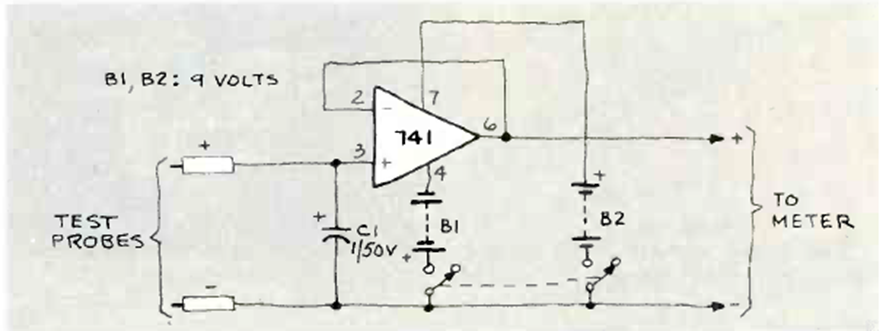

The purpose of this circuit is only to increase the input resistance of a multimeter, since there is no voltage gain. The batteries are 9 V and operational equivalents can be used.
| Clique na imagem para ampliar |
Voltage Test 741 (CB24726E)
- Details
- Written by: Newton C. Braga
