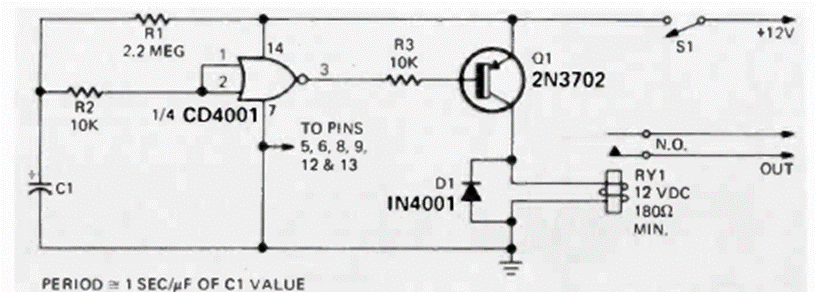

This circuit activates a relay after a time given by C1 and R1. The circuit is from a Radio Electronics from December 1974. The relay voltage is the same as that used in the power supply.
| Clique na imagem para ampliar |
Delayed relay 4001 (CB24349E)
- Details
- Written by: Newton C. Braga
