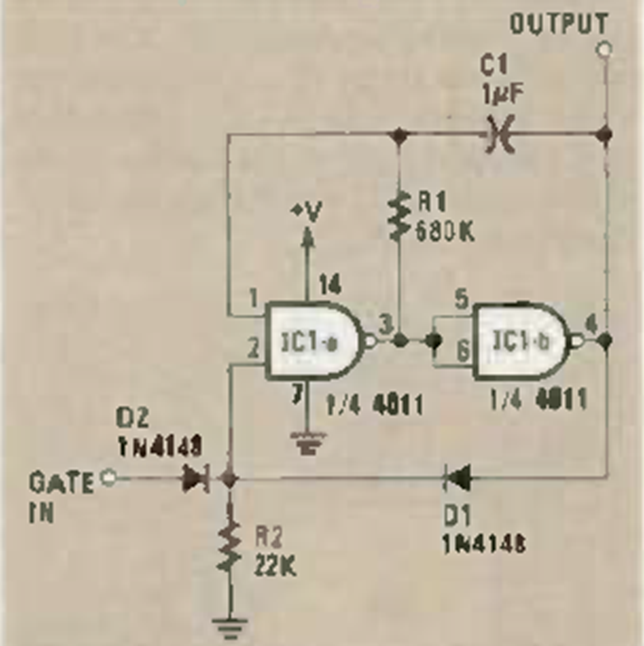

This circuit has a normally low output that is triggered by a high pulse. The circuit is from Radio Electronics from November 1984. The frequency is given by C1.
| Clique na imagem para ampliar |
Astable with semi-latching 4011 (CB24862E)
- Details
- Written by: Newton C. Braga
