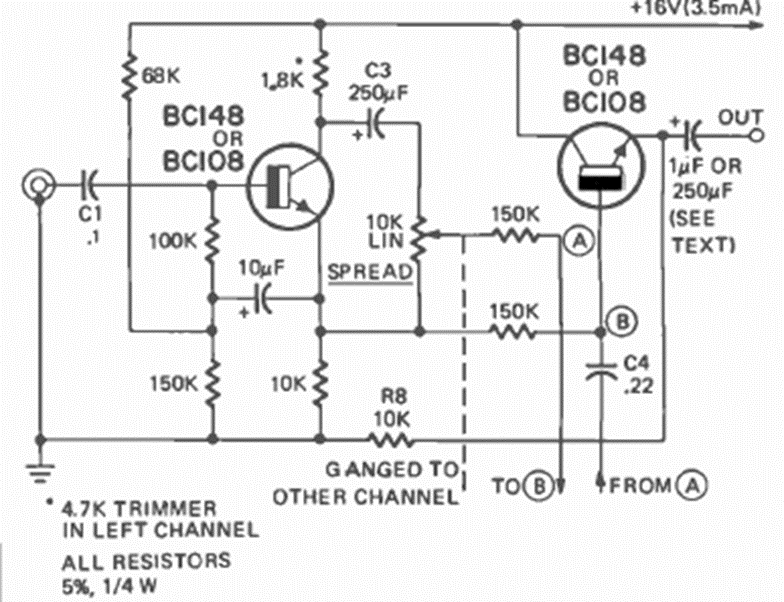

This circuit controls the channel separation as described in the March 1973 Radio Electronis magazine article. The circuit was proposed by Mullard (Philips) and consists of two channels as shown.
