90 V Inverter (CB24021E)

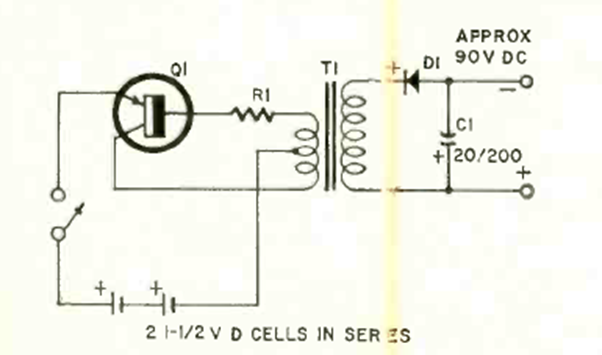

This circuit aims to replace a 90 V battery used in old tube radios. The circuit uses a transformer with appropriate voltage and the transistor can be any power one. Resistor R1 has values ​​between 470 ohms and 4k7 depending on the transistor gain.
