Pulse Train Generator (CB24847E)

Details
Written by: Newton C. Braga

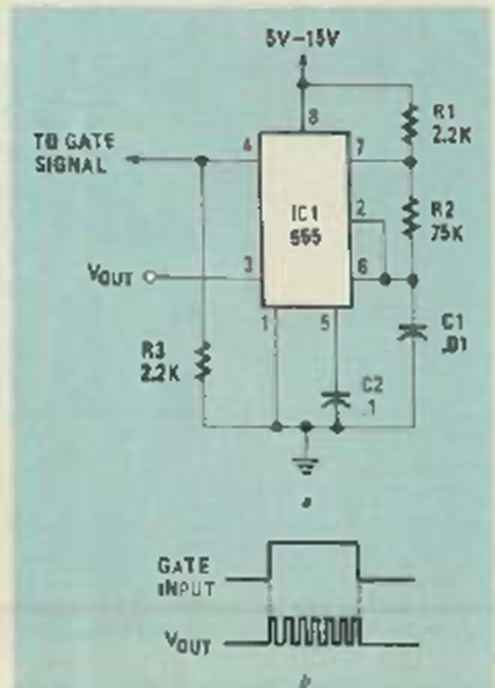

This 555 IC circuit was found in the September 1984 issue of Radio Electronics magazine. The circuit has its frequency determined by R1, R2, and C1.
