Transistorized Flip Flop (CB24037E)

Details
Written by: Newton C. Braga

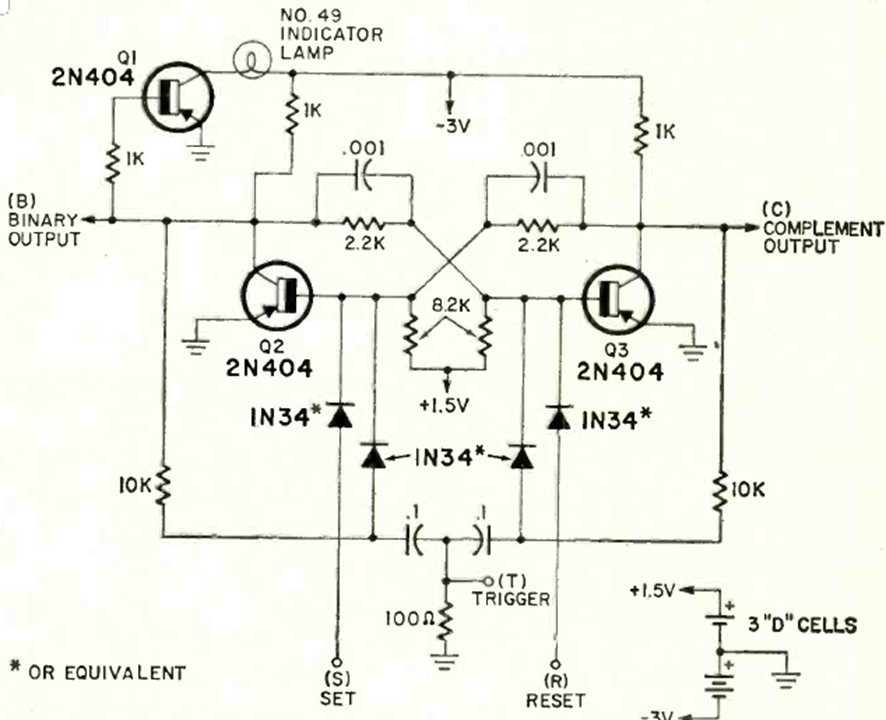

This well-designed bistable circuit was found in a 1970s documentation. Transistors can be current types and germanium diodes. The voltage depends on the logic used and can be made with 5 V.

.


| Clique na imagem para ampliar |
