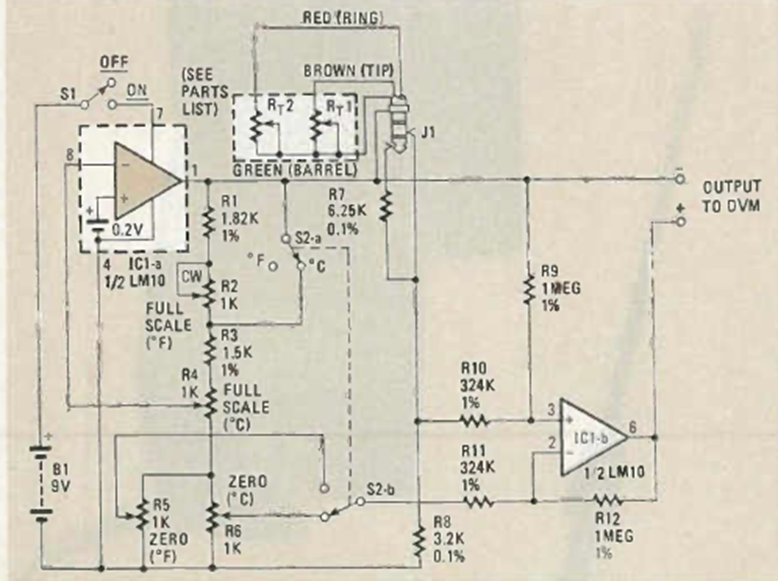

This circuit was found in the June 1985 issue of Radio Electronics magazine. The idea is to use a common multimeter to measure temperatures. The sensor is an LM10 integrated circuit. The circuit measures from 0 to 100º using an analog multimeter.
| Clique na imagem para ampliar |
