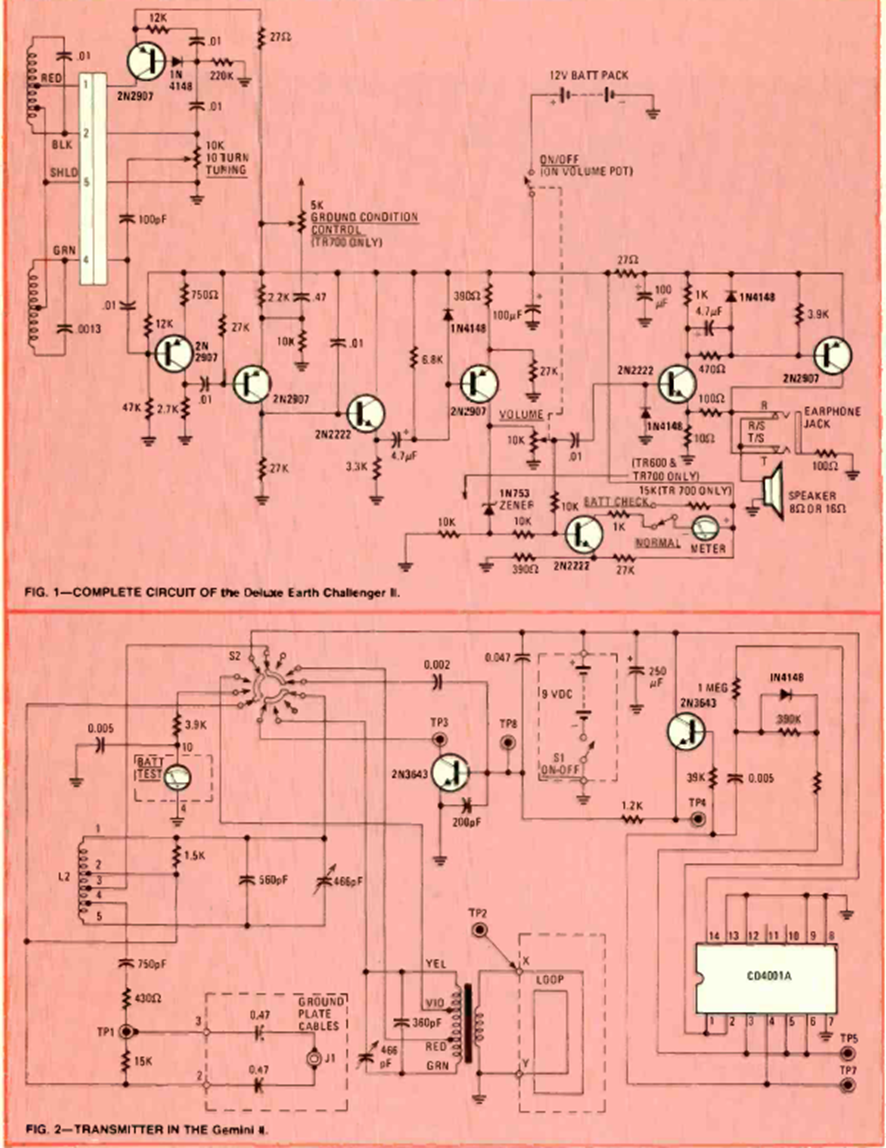

This sophisticated metal detector was published in the November 1980 issue of Radio Electronics magazine. The original article gave details of the coils to operate at a frequency of several hundred kilohertz. The receiver is the next circuit.
