Automatic Gain Control (CB24180E)

Details
Written by: Newton C. Braga

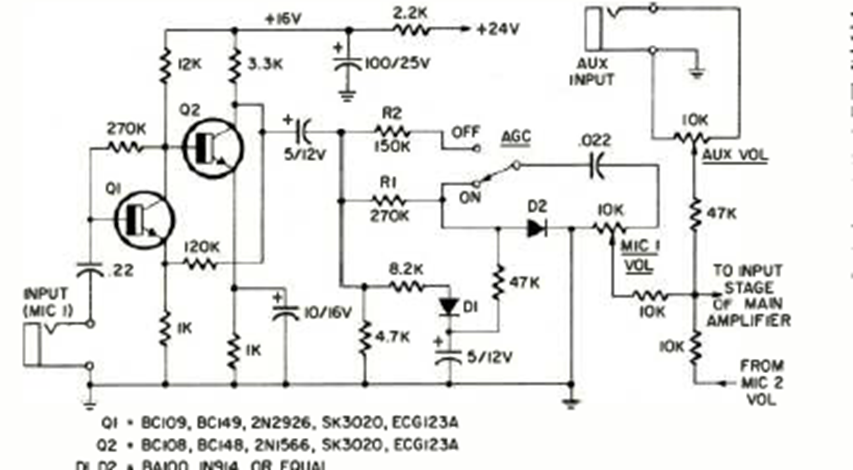

This circuit was featured in the March 1972 issue of Radio Electronics magazine. It adds automatic gain control to turntables by acting directly on the cartridge signal.
