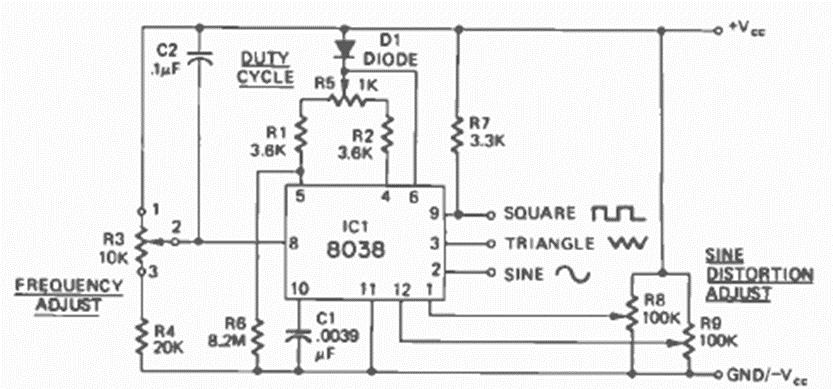

This is another of the many circuits we have with the 8038. The circuit is from the Radio Electronics magazine of November 1974. The typical power supply is 10V and we have adjustments for both frequency and symmetry of the generated signals.
| Clique na imagem para ampliar |
