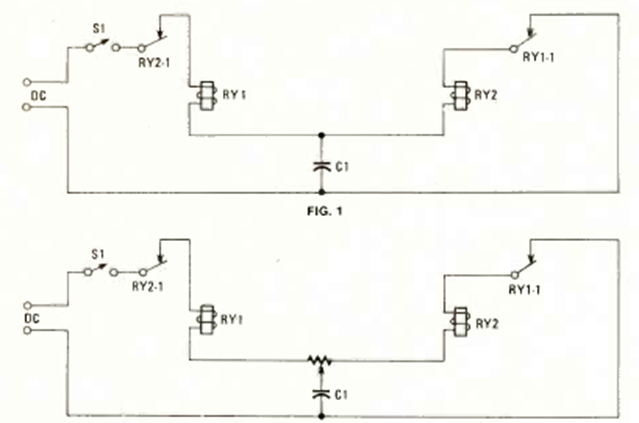

In the figure we have two possible configurations for multivibrators with relay. The idea comes from an article in the magazine Radio Electronics from April 1980. The relays are sensitive types with voltage according to the power supply.
Multivibrator with relay (CB24638E)
- Details
- Written by: Newton C. Braga
