CA3140 Integrator (CB24773E)
- Details
- Written by: Newton C. Braga

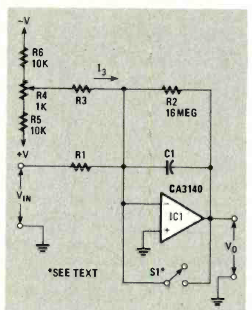

In the figure we have an integrated circuit with the CA3140. The values of R1 and C1 depend on the signal that must be integrated. The power supply must be symmetrical.
