Very sensitive light alarm (CB24150E)

Details
Written by: Newton C. Braga

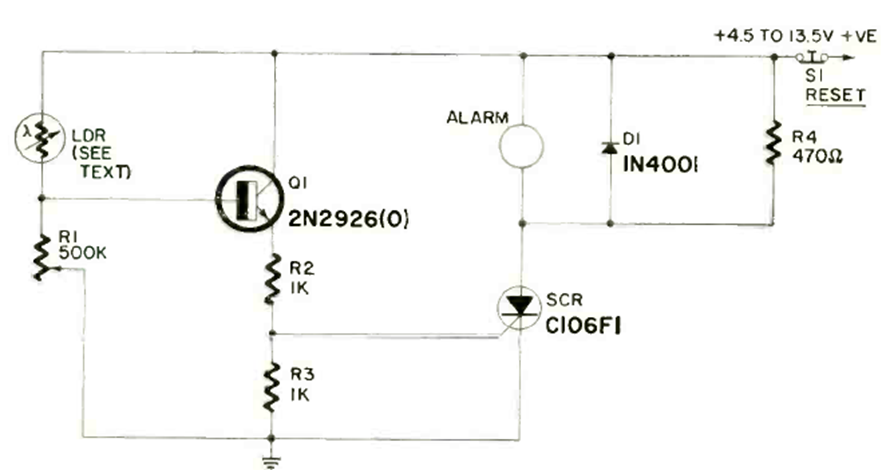

This circuit was found in the August 1971 Radio Electronics magazine. The SCR admits equivalents and instead of the buzzer a sensitive relay can be used.
