Pendulum Circuit (CB24555E)

Details
Written by: Newton C. Braga

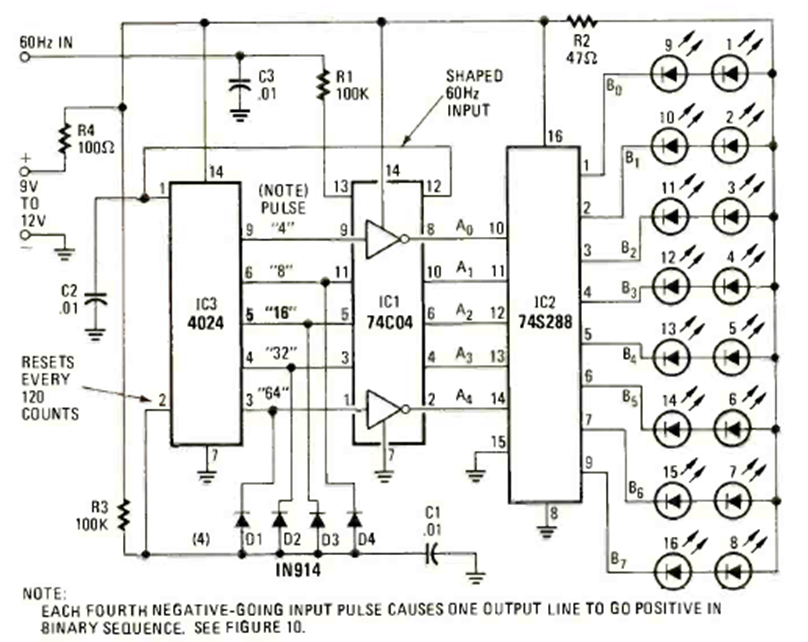

The movement of the LEDs in this circuit mimics the back-and-forth movement of a pendulum, making it suitable for clock projects. The circuit is from a Radio Electronics magazine from May 1978.




| Clique na imagem para ampliar |
