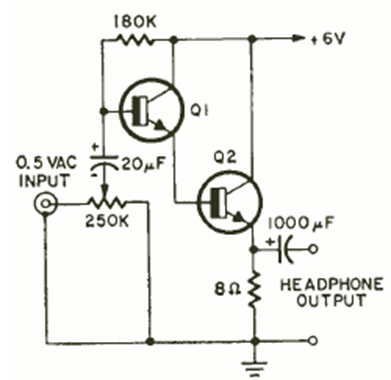

This simple amplifier was found in a Radio Electronics magazine from July 1970. The transistors are general-purpose transistors of the time, and the output is low impedance. The transistors are in the Darlington configuration.
Headphone Amplifier (CB24050E)
- Details
- Written by: Newton C. Braga
