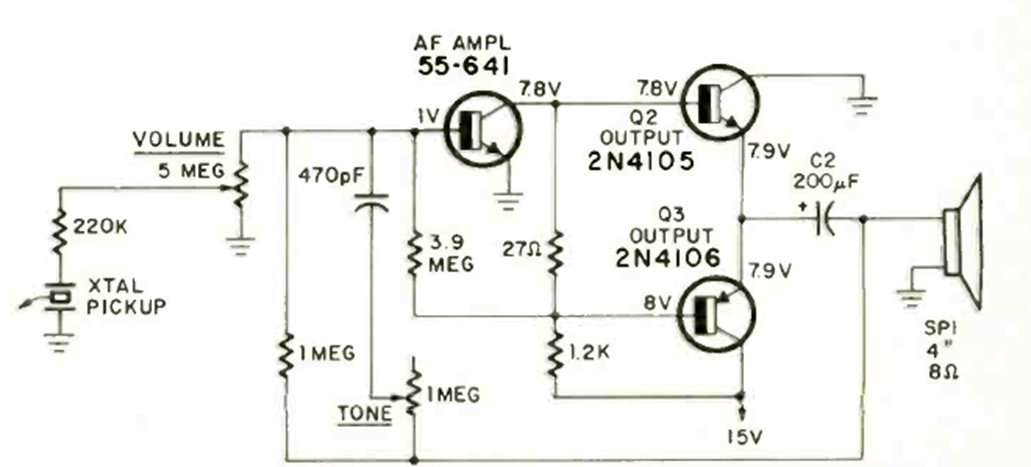

This amplifier with a direct coupled pair was published in the February 1971 issue of Radio Electronics magazine. The circuit has an output power of a few watts and is suitable for small turntables.
| Clique na imagem para ampliar |
Darlington Amplifier (CB24105E)
- Details
- Written by: Newton C. Braga
