Bicycle Speedometer (CB24536E)

Details
Written by: Newton C. Braga

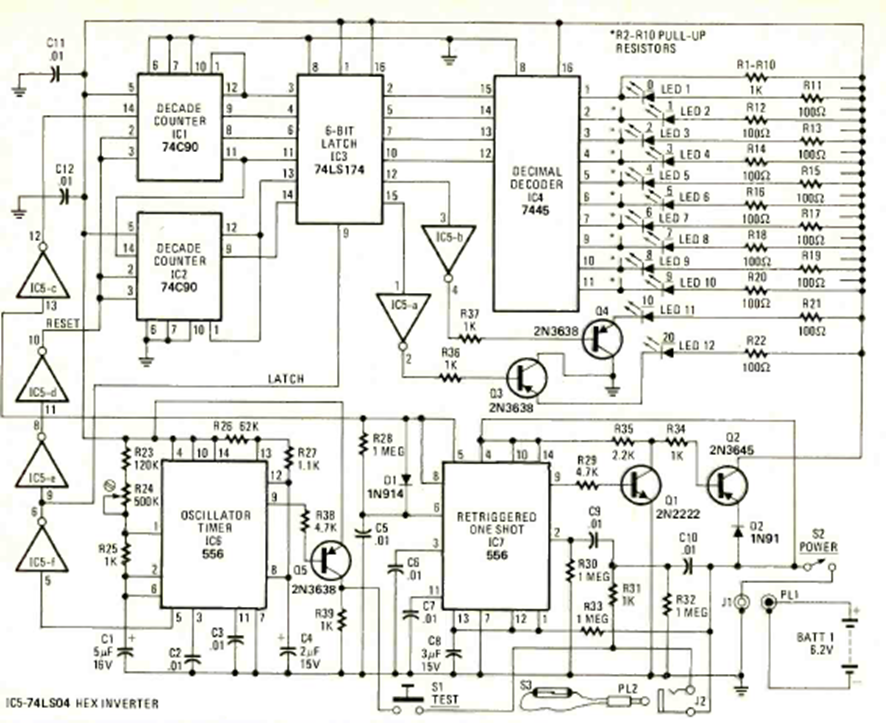

Published in a February 1978 Radio Electronics magazine article, this digital circuit uses some of the integrated circuits of the time. The circuit uses a LED bargraph.
